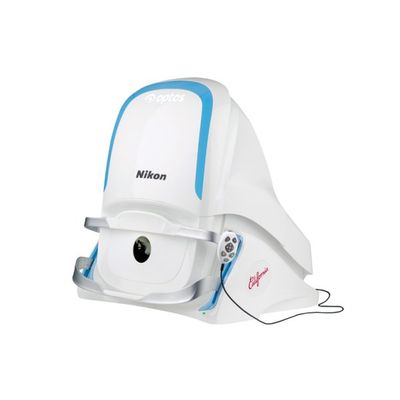

Optos CaliforniaIcg - Ultra-widefield Imaging Device

With California, Optos has incorporated new hardware and software technology enabling practitioners to see more, discover more and effectively treat more ocular pathology thus promoting patient health.

In addition to the benefits found with all of the UWF devices from Optos such as 200 degrees or up to 82% of the retina captured in a single image, in multiple modalities, as well as eyecare professionals being able to see 50% more of the retina when compared to other conventional imaging devices, California icg, offers the following benefits:

• Motorized head and chin rest to more easily assist those patients requiring additional assistance during imaging
• Multiple imaging modalities including; 3-in-1 color depth imaging (color, red-free and choroidal in a single image) as well as  autofluorescence. and interweaved angiography which enables parallel capture of fa and icg images without manually switching between imaging modalities

• Image Modalities :
• optomap color and optomap plus (red and green laser):
• Color composite view
• Green laser view
• Red laser view
• optomap af (green laser): autofluorescence
• optomap fa (blue laser): fluorescein angiography
• optomap icg (infra-red): indocyanine green angiography
• Resolution :
• optomap color: 20 μm
• optomap plus, af, fa, icg: 14 μm
• Wavelengths :
• Red laser: 635 nm
• Green laser: 532 nm
• Blue laser: 488 nm
• Infrared laser: 802 nm
• Exposure Time : Less than 0.4 seconds
• Footprint :
• Width: 550 mm / 22 inches
• Depth: 550 mm / 22 inches including chinrest
• Height: 608-632 mm / 24-25 inches
• Weight : 34 kg/ 75 lbs
• Laser Class :  Laser safety Class-1 following IEC/EN60825-1:2007 and 21 CFR1040.10 and 1040.11
• System Voltage :
• US: 100-120V at 50/60Hz
• EU/AU: 200-240V at 50-60Hz
• Power Consumption : Max. 300 VA
• Communication Protocol : DICOM Compatible
