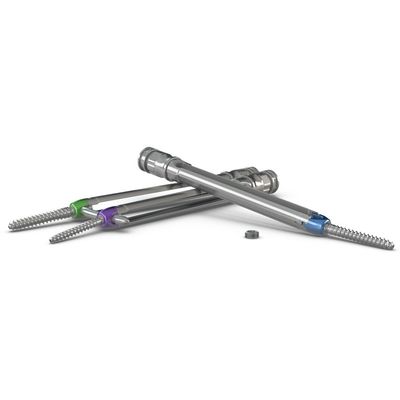

SpineVision - Model Lumis - Versatile Polyaxial Top Loading Pedicle Screw System

Dynamic stabilization even in MIS

• Fully compatible with the Flex +2 rods
• Patented dynamic rod to be percutaneously implantable

Percutaneous screw placement

• Easy to use and secured Ø 14.5mm extension
• +/- 30° polyaxiality
• Low profile implants

Comprehensive range of implants

• Screw diameters from 5.5mm to 8.5mm in 1mm increments
• Length from 30 up to 60 mm in 5 mm increments
• 6mm diameter titanium alloy rods, from 30mm to 140mm in length

Ergonomic and time saving instrumentation

• Quick and easy extension loading
• Double lead thread for fast insertion
• Color coded screws for quick identification
• Two different solutions for rod introduction
• 2 types of persuaders (from 16 to 33mm of offset)

CE marking : YES
FDA clearance: YES

Lumis is a class IIb medical device, manufactured by SPINEVISION SAS – France. Lumis and SPINEVISION are registered trademarks of SPINEVISION or one of its subsidiaries.

See package insert for labeling information.
