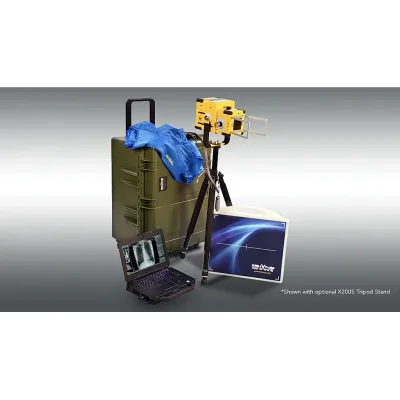

MinXray - X-Ranger Wireless: Battery-Powered Portable Digital Radiography System
The X-Ranger Wireless system by MinXray is an ultra-durable, battery-powered, portable digital radiography system designed to meet the demands of field conditions. It is ideal for Level 1 care situations, combining several high-performance components into a compact, easily transportable package. The system features the TR90BH x-ray generator, a wireless Cesium Iodide (CsI) x-ray flat panel detector housed in carbon fiber, and a ruggedized laptop or tablet preloaded with DICOM 3.0 compliant imaging software. This configuration enables rapid and reliable imaging in various challenging environments. The entire system is enclosed in a military-grade transport case for added durability. The TR90BH generator operates at 20 - 10 mA and 40 - 90 kVDC, powered by a 60 VDC rechargeable lithium-ion battery. The 14x17 detector has a pixel range of 6.5 to 7.3 million, offering 16-bit A/D conversion and an exposure control of Automatic Exposure Detection. It supports AC 100-240 V at 50/60Hz for power and the detector's housing is made from carbon fiber and high-strength aluminum alloy.
Features of the X-Ranger include:
- TR90BH battery-powered x-ray generator
- 14″ x 17″ wireless cesium digital detector in carbon-fiber housing
- Ruggedized tablet or laptop loaded with DICOM 3.0 compliant imaging software
- Custom case options available
- Total Weight In Mil-Spec Transport Case: 99 lb (45kg)
Ultra-durable and entirely battery-powered, the X-Ranger provides superior imaging even under the most demanding field conditions. Designed for Level 1 care, the X-Ranger is a complete portable digital radiography system that combines the powerful TR90BH x-ray generator with a wireless CsI x-ray flat panel detector and ruggedized laptop or tablet all in a compact, military-grade transport case.
MinXray TR90BH
- X-Ray Output: 20 - 10 mA @ 40 - 90 kVDC
- External Dimensions: 8.6" x 7.4" x 12.6" (21.8 x 18.9 x 32.1 cm)
- Weight: 16.3 lb. (7.4 kg)
- Power: 60 VDC rechargeable lithium ion battery
14 x 17 Digital Detector Specifications
- Scintillator: Direct Deposit Cesium Iodide (Csl)
- Exposure Control: Automatic Exposure Detection
- Pixels: 6.5 - 7.3 million
- Image Size: 14 x 17 in (35 x 43cm)
- A/D Conversion: 16 bit
- Output Data: 16 bit
- Preview Image Access Time: 4-6 seconds
- Power (Voltage/Frequency): AC 100-240 V 50/60Hz
- Dimensions (Sensor Unit): 384 x 460 x 15 mm
- Weight (Sensor Unit): 7 - 8.2 lbs
- Housing Material: Carbon Fiber Front - High Strength Aluminum Alloy Back
