Baltic - X-ray Micro-Computed Tomography

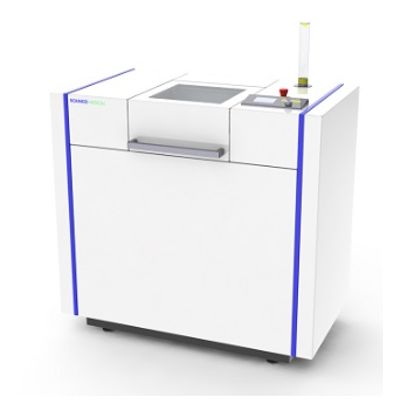

µCT50 combines sub micron pixel size (nanoCT) with a large field-of-view, making this system extremely versatile. Variable filter and X-ray power settings greatly increase the range of materials that can be scanned.
Most popular related searches
Type
Cabinet cone-beam microCT
Fully shielded
No external shielding required
X-ray source
Sealed
Air-cooled
Maintenance-free
5 - 30 µm spot size (4 - 18 W)
20 - 100 kVp (45, 55, 70, 90 kVp preset and calibrated)
Detector
3400 x 1200 elements, 20 µm pitch
Resolution
‹ 2 µm 10% MTF
0.5 µm (nanoCT) - 100 µm nominal isotropic (pixel size)
Image matrix
512 x 512 to 8192 x 8192 pixels
Max. scan size
50 x 120 mm (ØxL)
Max. specimen size
100 x 160 mm (ØxL)
