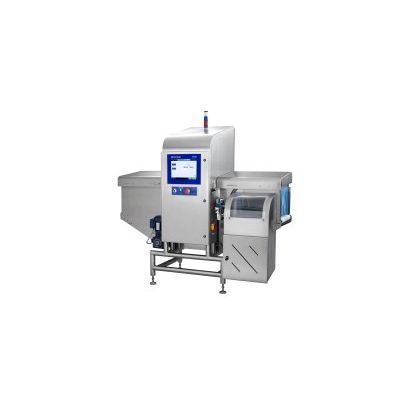

Model X36 Series - X-Ray System
Outstanding Product Inspection The most advanced and diverse x-ray inspection system on the market, offering outstanding contamination detection for packaged products in single and multi-lane applications.
Multiple Detector Options
0.4mm / 0.8mm detectors are available to suit individual customer applications and x-ray inspection requirements.
Low and High Powered Generators
Multiple generator options are available, making it one of the most adaptable x-ray inspection solution available on the market.
High Throughputs
The X36 Series offers high inspection speeds of up to 1,000 products per minute (depending on production dimensions, higher throughputs are possible).
Casing Material: 304 stainless steel
Conveyor Speed: 10- 80 m/min (dependent on product dimensions)
Lane Configurations: Single and multi-lane operations
Throughput Rate: Up to 1,000 products per minute (dependent on product application)
Cooling Method: Internal Fan or Air Conditioner
Screen Display: 15.6” LED display
Operating Temperature: 5 - 40°C
Power Supply: 230Vac, 1 phase, 50Hz, 6A
Pneumatic Supply: 230Vac, 1 phase, 50Hz, 6A
X-ray Detector: 300, 400, 500, 600 and 800mm
X-ray Generator: 20W, 100W, 300W and 420W
X-ray Beams: Single
X-ray Emissions: < 1uSv/hr
Reject Type: Pusher and Airblast
System Conveyor: FDA and EU food use approved TPU conveyors
Mass Measurement
The X36 Series can simultaneously perform gross and zoned mass measurement for portion control with feedback to the filling machine to protect profitability, as waste is minimised.
Optional System Size

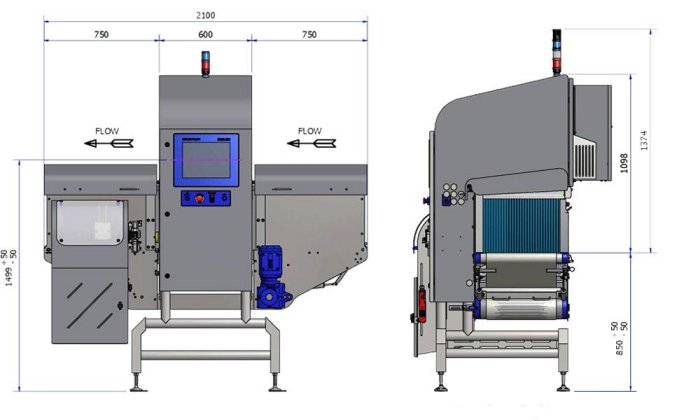

The X36 Series is available in two lengths 1,200mm or 2,100mm, enabling manufacturers with limited factory floor space to comply with rigorous industry standards and reduce energy consumption.
Product Application
Designed specifically for inspection of small, medium and large sized packaged food products.
Hygienic Design
Easy cleaning and maintenance for optimum protection against pathogenic micro-organism growth. IP69 comes as standard for harsh washdown environments.
Low and High Powered Generators
20W/100W/300W/420W generators are available to suit individual applications, making it one of the most adaptable x-ray inspection solutions available on the market.
