Model X-ACT - CT Scanning Suite Software

Everything is combined in a single X-ray software, from the set-up to the CT scans` 3D rendering
The X-Act software has a full interface for inspecting your samples precisely. It is more than just an acquisition and reconstruction X-ray software for CT scanning, it is also an advanced solution with a wide range of scanning strategies that provide the best possible outcomes, regardless of your application.

Greater user experience comes with greater power
X-Act is a very powerful tool to adapt to every user profile and need. Simple, intuitive and user-friendly, the X-ray CT technology is made accessible to any user - from the expert to the beginner. X-Act, as an all-in-one solution, carries out three user modes: X-Act Expert, Guided acquisition (step-by-step guide with suggested settings) and Wizard mode (fully automated for less effort).

• Fast and accurate results
• Three user modes
• Multiple scanning strategies
• Fast return on investment

Radiography
Live inspection

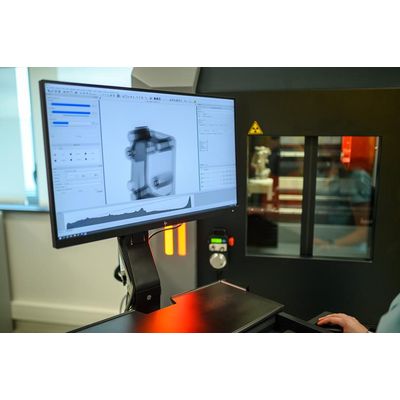

Radiography is quick and easy with X-Act. Software filters are included to improve sharpness and contrast.  3D measurements can be taken directly on the  radio.

Acquisition
Data acquisition
The workpiece previously positioned in the equipment rotates through 360°. During this rotation, a set of radio projections are acquired at different angles.

Reconstruction
Data processing
All the projections made during the acquisition step are reconstructed as a 3D volume. The volume thus generated will serve as the basis for the optional third step: post-processing.

Phase contrast removal
High resolution in X-Ray µCT generally means the occurrence of small-angle scattering also known as phase contrast artefacts, especially with low absorbing materials. Phase signal contributions are no longer negligible regarding the X-Ray absorption, resulting in a new contrast phenomenon that offers edges enhancements, but a lower absorption contrast between phases.

Beam hardening correction

This correction allows you remove beam artefacts from your component without having a proper spectrum estimation.

It`s a user-guided algorithm offering a simple way to compute the estimated absorption photons curve and correct the image deviation.

Ring artefacts removal

Ring artefacts result from a non-linear response of the detector which generates circular artefacts centered on the rotation axis.

This correction works directly on the projections and preserves the image features/resolution.

2 Releases Per Year
Keeping X-Act Up To Date
Our team is continuously working to provide customers with the best X-Act experience by focusing on high-level image processing and tomographic reconstruction. X-Act is improved with innovations, especially developed to enhance capabilities, increase speed or release features the industry has never seen before. Since the beginning, the flexible spirit behind X-Act has been kept, making this software a perfect CT tool for every application.

Multiple Scanning Strategies & Great Flexibility
X-Act is a powerful software with an easy and intuitive user interface. Delivered with an incredible number of functionalities, X-Act enables you to set the perfect parameters for the scanning process, for any kind of sample.

X-Act allows multiple scanning strategies, from conventional CT scan mode to multiple advanced acquisition capabilities, such as helical, stack, shift, laminography, limited angles, Region of interest zooming, Dynamic 4D CT

Advanced Artefacts Corrections

• X-Act software suite by RX Solutions includes multiple artefacts compensations plugins that enhance CT scans:
• Geometry, focal spot movement, phase contrast, ring artefact, beam hardening, metal artefacts and more

Automation, Macro & Scripting

• Automation, macro & scripting allow the programming of automatic scans when carrying out inspections of large series of samples.
• They can drastically increase the throughput of your CT system and the overall productivity. Unique scripting capabilities allow you to extend or custom fit the system to your needs.
