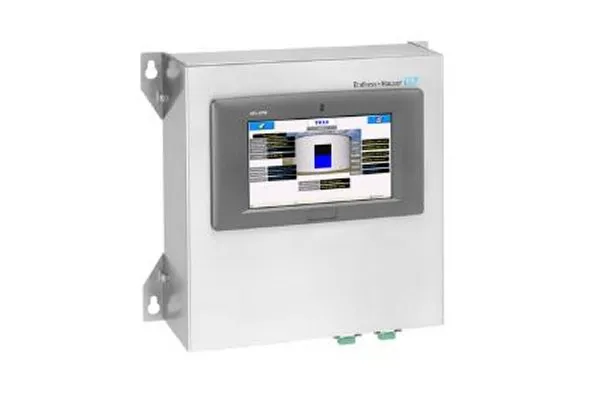

Tankvision Multi Scan - Model NXA83 - Tank Inventory Management Software

• Scans parameters from tank gauges and performs tank calculations
• Suited for tank farms with various protocols used for communicating with the installed field devices and/or redundancy needs
• Provides data to host systems (such as PLC or DCS) via Modbus and/or OPC
• Ambient temperature: 0 to 55°C (32 to 131°F)
• Approved for custody transfer applications according to NMi and PTB (in preparation)

Fieldbus components

• Measuring principle

  Level radar

• Function

  Multi Scan

  Acquires data from Field Instruments (up to 16 loops). The data is provided to the visualization software Tankvision Professional NXA85 or other host systems (PLC und DCS).

• Input

  Modbus RS485; V1; WM550; Tokyo Keiso FW9000; Varec Mark/Space; Saab TRL/2; Enraf BPM; Scientific Instruments; Modbus Ethernet

• Output

  OPC DA; Modbus RS485; Modbus Ethernet

• Power supply

  AC: 100...240 VAC

• Dimensions (WxHxD)

  Rack mounted:

  483x176x260 mm (19x6.93x10.24 in)

  Wall mounted:

  322x300x110 mm (12.68x11.81x4.33 in)

• Configuration

  Via remote desktop

• Successor

  NXA83B

Continuous / Liquids
