PTW Freiburg GmbH products

Explore the comprehensive solution for MR linac commissioning and quality assurance with BEAMSCAN MR. Our streamlined system seamlessly integrates automatic beam data acquisition, processing, analysis, and protocol-based documentation. Designed to meet the highest standards of quality and technology, BEAMSCAN MR offers robustness, versatility, and user-friendly operation. Discover the difference with BEAMSCAN MR.

OCTAVIUS 4D is an ideal system for routine Patient and Machine QA of all major radiotherapy techniques - from conventional step-and-shoot to multiple-arc, non-coplanar treatment plans. With its modular phantom design and a variety of detectors, OCTAVIUS 4D allows you to select the phantom and detector combination that is best for your patient QA needs.

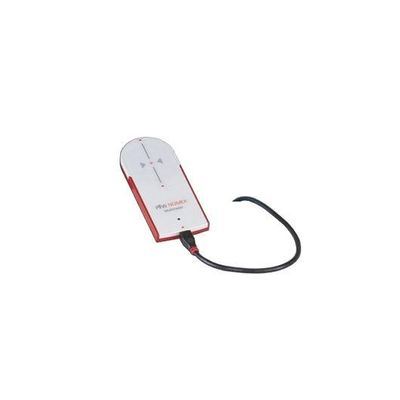

All relevant X-ray parameters captured in one single shot. Modular, individual, easy-to-upgrade models for specific X-ray modalities: RAD/FLU, DENT, MAM, CT, IGRT available. PC-based, ultrafast setup - ready to use, only one cable to connect. Fully automated medical device class IIb - all relevant ranges set up automatically. Exceeding IEC standard requirements: Dose accuracy within the RAD/FLU range typically ± 1.5%, within the MAM range ± 2.5% and kV accuracy within the RAD/FLU range typically ± 0.75% or ± 0.5 kV. Rotation-independent positioning in the central beam - no further alignment needed. Intuitive software, including one-click export of data and waveform charts to MS Excel® templates. Fully integrated with Track-it for long-term trend analysis.

CE marked, class IIb certified diagnostic dosimetry system, fully compliant with IEC 61674 for acceptance testing and quality control measurements on RAD, FLU, DENT, CT and MAM X-ray modalities. Field-class electrometer acc. to IEC 60731 for air kerma measurements in radiotherapy and orthovoltage therapy. Outstanding accuracy (± 2%) and excellent resolution (20 fA). Connection of semiconductor detectors  or ion chambers or of the NOMEX® Multimeter. Combined with the NOMEX Multimeter and/or NOMEX mAs all relevant QC parameters can be captured in one single shot. Automatic air density correction when using ion chambers. Waveform display and storage of last 100 measurements.Allows data and waveform export as XLS, XML or CSV  file via USB or  Bluetooth. Operation menu in multiple languages (Chin./Eng./Fren./Ger./Ital./Jap./Port./Russ./Span.). Convenient firmware updates on-site.

The NOMEX mAs is an invasive meter for measuring the current time product (mAs) on diagnostic X-ray generators. For invasive measurements the NOMEX mAs connects to the generator of the X-ray unit via banana plugs. Optionally, non-invasive mA and mAs measurements can be performed by means of connecting a current clamp directly to the NOMEX® mAs. The NOMEX mAs can be used as a stand-alone device or in combination with the NOMEX Dosemeter together with an external dose detector and/or simultaneously with the NOMEX Multimeter.

The NORMI RAD/FLU test object is used for acceptance and constancy tests of analogue and digital X-ray installations for fluoroscopy and radiography. The NORMI RAD/FLU structure plate includes a copper step wedge for testing the dynamic range, a resolution test pattern, low contrast and detail test elements. The structure plate enables checking all parameters in one shot.

When quality matters in imaging QA - Test object for digital volume tomography (3D) X-ray modalities The NORMI 3D is a test object for quality control and acceptance tests of digital volume tomography (DVT) X-ray installations as well as for DVT installations with integrated imaging function.
