RayOne - Model RAO600C -Aspheric Lens
Fully preloaded with Rayner’s clinically superior 600C aspheric lens, RayOne is the world’s smallest incision fully preloaded injector. RayOne Aspheric (RAO600C) offers surgeons a 2.2 mm incision and two-step preparation system to deliver a monofocal with less PCO, less decentration, and a higher Abbe value to ensure reliably superior patient outcomes time after time. RAO600C is available in a wide power range (+8.0 D to +34.0 D) and is completely glistening free.
Most popular related searches
Model Name: RayOne Aspheric
- Model Number: RAO600C
- Power Range: +8.0 D to +30.0 D (0.5 D increments)
- +31.0 D to +34.0 D (1.0 D increments)
- Delivery System Type: Fully preloaded IOL injection system
- Incision Size: 2.2 mm
Delivery System
- Injector Type: Single use, fully preloaded IOL injection system
- Nozzle Size: 1.65 mm
- Bevel Angle: 45°
- Lens Delivery: Single handed plunger

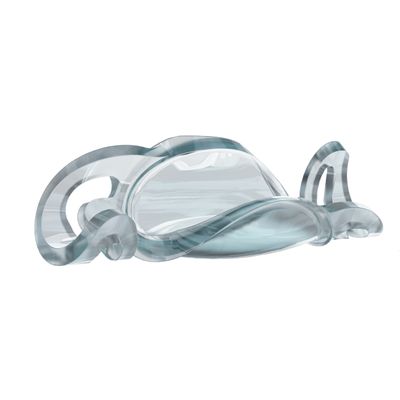

Aspheric Monofocal IOL
- Material Single piece Rayacryl hydrophilic acrylic
- Water Content 26% in equilibrium
- UV Protection Benzophenone UV absorbing agent
- UV Light Transmission UV 10% cut-off is 380 nm
- Refractive Index 1.46
- ABBE 56
- Overall Length 12.50 mm
- Optic Diameter 6.00 mm
- Optic Shape Biconvex (positive powers)
- Asphericity Anterior aspheric surface with aberration-neutral technology
- Optic Edge Design Amon-Apple 360° enhanced square edge
- Haptic Angulation 0°, uniplanar
- Haptic Style Closed loop with Anti-Vaulting Haptic (AVH) technology
