Flomotion Systems, Inc.

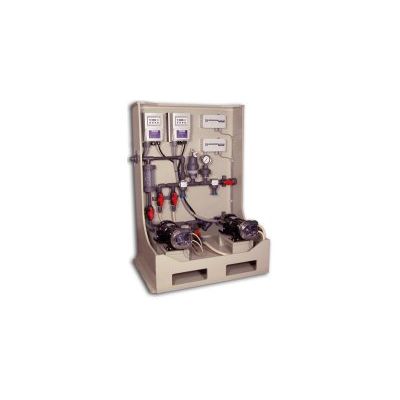

Flomotion System - Model PP1H & PP2H Series - Pre-Packaged & Self-Contained Chemical Feed Systems
Suitable for base or wall mounting, the PP1H and PP2H is a self contained, prepackaged chemical metering system. Flow rates are available up to 48 GPH and is capable of injecting into pressures up to 100 PSI. The Polypropylene or Fiberglass mounting skid features integral leak containment with an optional Tubing Rupture Detector that can start a back-up pump and/or signal an operator remotely via an autodialer. The rugged industrial pumps use NEMA TEFC motors and seal-less pumping technology. They are self-priming with suction lifts up to 25 ft.
Most popular related searches
tank level monitoring
chemical meter system
pressure relief valve
PVC ball valve
pump technology
peristaltic pump
pulsation dampener
calibration cylinder
industrial pump
metering system
- Single and Multiple Pump Configurations
- Panel Material: Polypropylene or Fiberglass
- Process Piping Material: PVC
- Process Connections: 1/2” NPT
- Dimensions: 48”H x 30”W x 14.5”D
- Weight (PP-2H shown): 130 Lbs. (w/pumps)
- Power: 115 VAC
- Multi-Function Controller
- Flowmeters
- Tubing Rupture Detection
- Supply Tank Level Monitoring
- Tanks
- On-Line Analyzers
- Corp Stops with Solution Tube Assembly
- FLOMOTION SYSTEMS 2001H Series Peristaltic Pump with NEMA 4x Controller
- Back pressure and Pressure Relief Valves
- 500ml Calibration Cylinder
- Pulsation Dampener
- Diaphragm Protected Pressure Gauge
- Suction Wye Strainer
- PVC Ball Valves
- Leakproof Tubing Connectors
- Suitable for base or wall mounting
- Flow rates to 50 GPH, pressures to 100 PSI
- Integral leak containment with optional Tubing Rupture Detector relay output that can start a back-up pump and/or signal an operator remotely via an autodialer.
- Rugged industrial TEFC motors.
- Seal-less pumping technology.
- Self-priming – suction lifts to 30 ft.
- No check valves – few moving parts.
