pfmModel CP -Cardiological Stent

SHARE

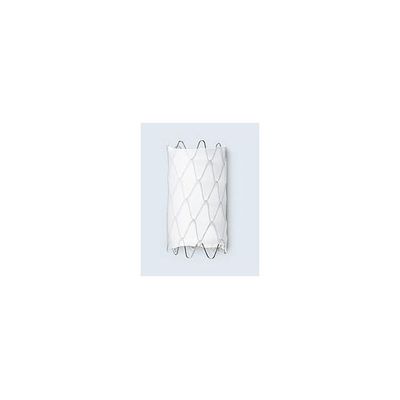

The CP Stent is composed of 0.013“ Platinum/Iridium wire that is arranged in a “zig” pattern, laser welded at each joint and over brazed with 24K Gold. It allows expansion from 12 mm to 30 mm. The Covered CP Stent™ is comprised of the Bare CP Stent that is covered with an expandable sleeve of ePTFE.

Most popular related searches

High quality  The CP Stent™ is made of a 0.013`` thick platinum/iridium wire mesh arranged in a zig-zag pattern. Every point of intersection is laser welded and coated with 24-carat gold.

High expansion range  It has an expansion range of 12 – 30 mm.

Bare & Covered  The CP Stent® is available in a bare version or covered with an expandable sheath of ePTFE..

Adjustable fit  Thanks to its considerable capacity for expansion, the stent just needs to be re-dilated to accommodate the child’s natural growth. Therefore no extra stent needs to be implanted.

  • Wire: 0.013`` Platinium/Iridium
  • Connection/Welding: 24K Gold
  • Stent length (mm): 8zig: 16 - 60 | 10zig: 39 - 60
