Cryofab - Model CH Series -Cryogenic Tanks for Liquid Nitrogen, Argon & Oxygen

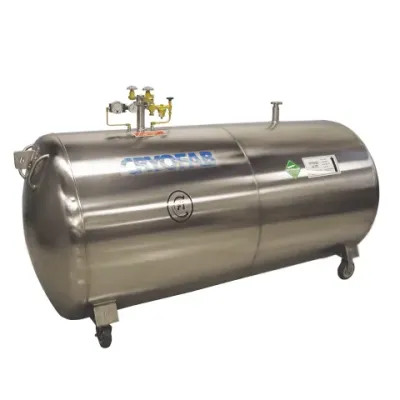

The CH Series cryogenic storage tank is intended for low-pressure inter-facility transport and storage of liquid nitrogen, oxygen, and argon. Convenient Access to Cryogenic Liquids. These tanks feature a horizontal design, so even vessels with a capacity of 2000 liters have access points at an easy-to-reach height. This makes CH Series ideal horizontal liquid nitrogen tanks for interaction with liquefiers.
Easy to Transport Low-Pressure Tanks
Casters are standard for this series, making the tanks easy to move in the lab or plant. A two-inch bottom clearance avoids obstacles.
Sturdy and Reliable Argon/Nitrogen/Oxygen Storage
A unique support system ensures strength and durability without sacrificing thermal efficiency.
Loss rates on these tanks have historically been lower than industrial cryogenic products normally available.
Completely Customizable Cryogenic Storage Tanks
Tank capacities are available from 300 to 2000 liters. The configuration of this horizontal liquid nitrogen tank can vary significantly when options are added.
- Stainless steel inner and outer jacket
- 2″ bottom clearance
- Low profile for accessibility
- 1.5″ o.d. neck opening, located center top with a flanged termination
- Two handles welded to tank end
- Lifting lugs
- Casters for easy mobility
- Robust support system
