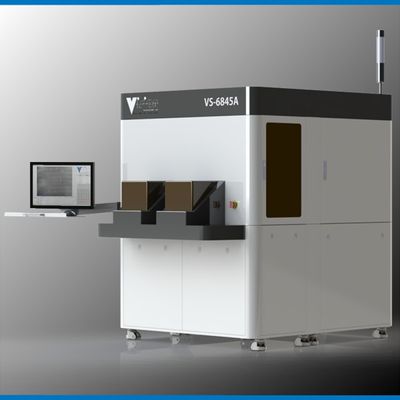

Model VS6845A -Defect Inspection System
Comply with IEC63068-3 Standard: Test method for defects using photoluminescence, Model VS-6845 SiC Wafer defect inspection system has capability on Non-destructive recognition criteria of defects in silicon carbide homoepitaxial wafer for power devices.
Most popular related searches
defect inspection system
wafer defect inspection system
inspection system
wafer defect inspection
non-destructive inspection
wafer defect
surface inspection
wafer inspection system
process control system
wafer inspection
The system uses near ultraviolet photoluminescence (NUV-PL) technology to perform high-speed, high-sensitivity and non-destructive inspection for crystal defects which cannot be detected with conventional visible light surface inspection

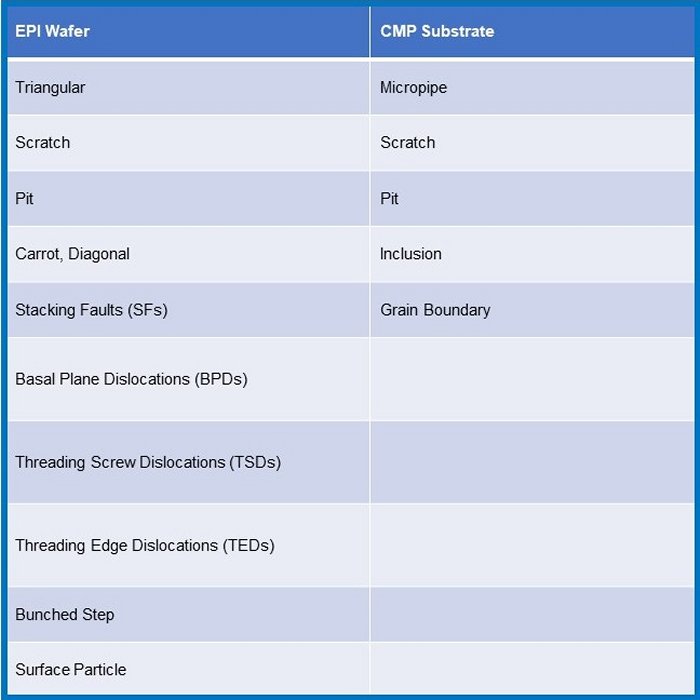

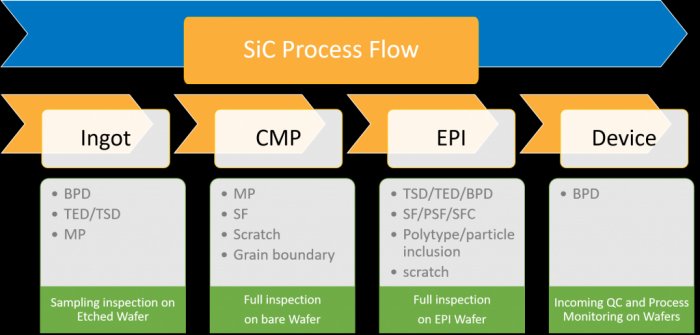

High Sensitivity to defects on SiC Substrate and 4H-SiC Epitaxy wafer, especially yield-impacting defects, enabling enhanced quality control and fast root cause determination, to improve MOCVD process control.
The system accelerated deep learning with GPU and Artificial Intelligent software to classify the defect more accurately.
Our AI_DL Auto Classification software can run in offline and easy to use.
