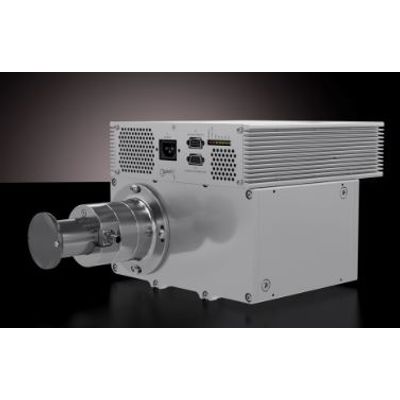

VJX - Model IXS041k -Integrated X-ray Source with X-ray Tube
FromVJ X-Ray
The IXS041k is an integrated X-ray source engineered to include a built-in X-ray tube, high voltage inverter, filament supply, and heat dissipation components. This product achieves a maximum output of 40kV and 1kW power, with a focused spot size of 1.5mm and a fan beam angle of 60°, ideal for precision in imaging applications. It features an optional water-cooling system to enhance reliability while operating efficiently. The integrated radiation shielding design reduces the need for additional system shielding, offering less than 0.5 mR/hr radiation leakage at 5 cm, aligning with FDA standards. The beryllium window X-ray tube facilitates the detection of low-density materials, making it suitable for applications such as inspection of decalcified bones. With its compact and lightweight construction, weighing 14 kg and an additional 3 kg for the control box, the IXS041k supports simple integration and maintenance. It operates within a power input of 220VAC±10%, 50/60 Hz, targeting both industrial and food safety sectors.Most popular related searches
Efficient Cooling
IXS041k can be configured with a water cooling mechanism to maintain the reliability of the source.
Radiation Shielded
IXS041k has localized radiation shielding to eliminate the need for extra shielding in the X-ray system.
Low Density Material Detection
IXS041k's beryllium window X-ray tube enables detection of low density objects such as decalcified bones with the soft X-ray spectrum.
Compact & Lightweight
IXS041k is compact and lightweight for compact system design and easy installation & maintenance.
