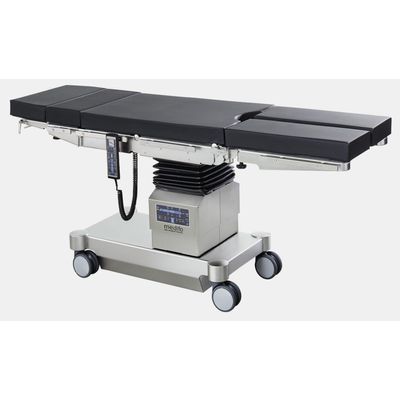

Medifa - Model 601920 -Mobile Electrohydraulic Operating Table
In addition to the main functions, the model 601920 has another electrohydraulically driven joint for adjusting the leg section. The adjustment of the single segments of the leg section can be carried out individually or simultaneously. This feature ensures a particularly ergonomic work-flow, especially during orthopaedic operations. A longitudinal sliding of up to 300 mm extends the range of application of this operating table.
Most popular related searches
Electrohydraulical functions:
- Height adjustment: 690 -1050 mm
- Trendelenburg: -30° / +30°
- Lateral tilt: -20° / +20°
- Lower back rest adjustment: -40° / +70°
- Longitudinal sliding: 300 mm
- Flexion: ?
- Fifth castor: ?
- Simultaneous leveling: ?
- Central brake: ?
- Further information:
- Table length (incl. head- and leg rest): 2080 mm
- Table width: 540 mm
- Table width incl. side rails: 600 mm
- Maximum permissible overall load: 454 kg
- Weight of table: ca. 200 kg
- Power supply: 110 V or 220 V / 50-60 Hz
Basic configuration
- Height adjustment from 690 mm to 1050 mm
- Trendelenburg adjustment from -30° up to +30°
- Lateral tilt up to 20°
- Lower back rest adjustment from -40° up to +70°
- Leg rest adjustment from -90° up to +75° (single or parallel)
- Longitudinal sliding up to 300 mm
- Flex / Reflex position
- Return to 0-position
- Selection of patient orientation (reverse mode)
- Lateral guide rails for attachment of accessories, stainless steel, 25 x 10 mm
- Continuous X-ray tunnel from head- to foot end
- Mobility with central brake
- 5th castor
- Viscoelastic SF upholsteries (H = 80 mm), electrically conductive, detachable
- Maximum permissible overall load: 454 kg (1,000 lbs)
