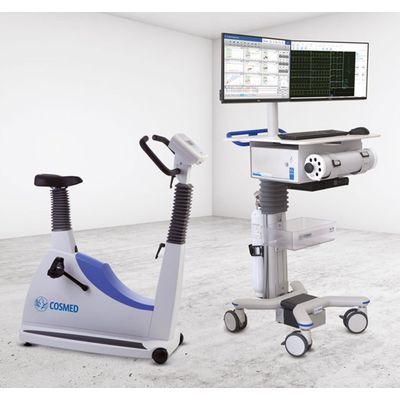

Quark CPET - Research Grade Stationary System for Metabolic Measurement
The Quark CPET is a state-of-the-art metabolic cart for gas exchange analysis (VO2, VCO2) during exercise or resting protocols. High-quality components and super-fast analyzers assure unsurpassed accuracy, reliability, and real-time analysis of pulmonary gas exchange, even at high-intensity exercises. Quark CPET carries several built in features and can be integrated with additional modules for both clinical and performance testing.
Breath by Breath & Mixing Chamber
Quark CPET is includes Breath-by-Breath sampling technology. A physical Mixing Chamber is also available for cardiopulmonary excercise tests performed at high intensities.
Spirometry and Exercise Flow/Volume Loops
Perform ergospirometry tests with an intuitive workflow that naturally guides the user from a simple spirometry assessment to the exercise flow-volume loops during an exercise test.
Walking Tests Module
Optional Walking and titration test module extends OMNIA functionalities for the evaluation of functional exercise capacity with any protocol and setup configuration.
ECG integration
Complete cardiovascular assessment can be performed by integrating wired or wireless 12-lead Stress Testing ECGs, featuring high resolution and advanced data analysis.
Connected with HIS
Quark CPET can exchange data with Hospital Information Systems (HIS) or Electronic Medical Records (EMR) via HL7®, DICOM® or GDT protocols with a dedicated worklist and updated visit status.
OMNIA Software
Quark CPET includes OMNIA, the modular software suite from COSMED with an innovative user interface. OMNIA`s intuitive workflow allows users to operate devices with no need for a long adaptation period.
- State-of-the-art breath-by-breath gas exchange data analysis (VO2, VCO2)
- Fast response paramagnetic O2 sensor
- Multi-use turbine flowmeter
- Multi-use silicone face masks with headgear for comfortable leak-free measurements
- Ideal method for research and clinical applications
- Physical mixing chamber for gas exchange data analysis (VO2, VCO2)
- Suggested for steady state protocols and exercise tests at low and high ventilation ranges
- Simplified set-up and calibration procedures
- Ideal method for sport science applications
- Measurement of oxygen consumption (VO2), carbon dioxide production (VCO2), together with other ventilatory parameters, and metabolism substrate utilization (%FAT, %PRO, %CHO).
- For spontaneously breathing subjects.
- For patients wieghing over 15kg.
- Multi-use turbine flowmeter
- Multi-use silicone face masks with headgear for comfortable leak-free measurements
- 5 sizes (3 Adult and 2 Pediatric)
- Easy to clean and sterilize
