RayOne - Model RAO100C -Spheric Lens
Fully preloaded with Rayner’s clinically superior 100C spheric lens, RayOne is the world’s smallest incision fully preloaded injector. RayOne Spheric (RAO100C) offers surgeons a sub 2.2 mm incision and two-step preparation system to deliver a monofocal with less PCO, less decentration, and a higher Abbe value to ensure reliably superior patient outcomes time after time. RAO100C is available in a wide power range (+8.0 D to +34.0 D) and is completely glistening free.
Model Name: RayOne Spheric
Model Number: RAO100C
Power Range: +8.0 D to +30.0 D (0.5 D increments)
+31.0 D to +34.0 D (1.0 D increments)
Delivery System Type: Fully preloaded IOL injection system
Incision Size: 2.2 mm
Delivery System
Injector Type: Single use, fully preloaded IOL injection system
Nozzle Size: 1.65 mm
Bevel Angle: 45°
Lens Delivery: Single handed plunger

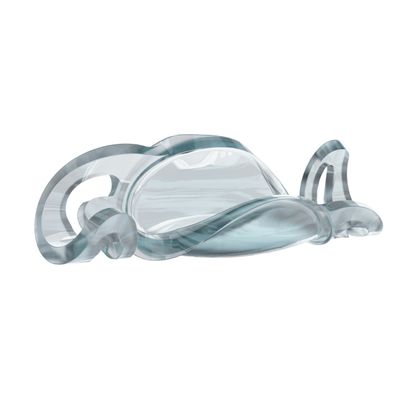

Aspheric Monofocal IOL
Material: Single piece Rayacryl hydrophilic acrylic
Water Content: 26% in equilibrium
UV Protection: Benzophenone UV absorbing agent
UV Light Transmission: UV 10% cut-off is 380 nm
Refractive Index: 1.46
ABBE: 56
Overall Length: 12.50 mm
Optic Diameter: 6.00 mm
Optic Shape: Biconvex (positive powers)
Optic Edge Design: Amon-Apple 360° enhanced square edge
Haptic Angulation: 0°, uniplanar
Haptic Style: Closed loop with Anti-Vaulting Haptic (AVH) technology
