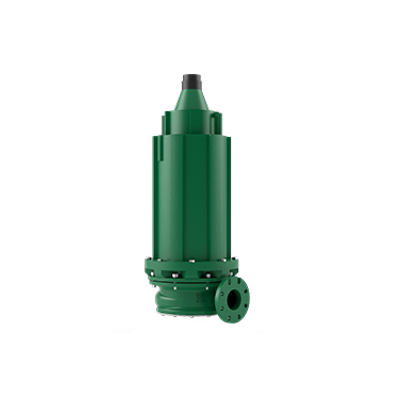

Vaughan Chopper - Model E-Series - Electric Submersible Pump

• Dry suction lifts up to 22 feet
• Flows over 13,000 gallons per minute
• Hydraulic efficiencies OVER 70%
• Discharge sizes from 3" to 16"
• Heat-treated and hardened components
• Direct or belt-drive configurations available
• Field tested and optimized for over 60 years
• Non-clog guarantee on all Chopper pumps

The Vaughan Chopper Pump is a centrifugal pump with the unique ability of chopping all incoming solids prior to pumping. This not only protects the pump from clogging, but it also benefits downstream components, processes, and the environment.

All wear components are cast steel and heat treated for maximum impact and wear resistance. These heavy-duty, patented components are engineered together to create the ultimate pump for handling severe solids. All solids are chopped as they enter between the cutter bar and the impeller vanes. The smaller solids are easily pumped by the centrifugal action of the impeller.
