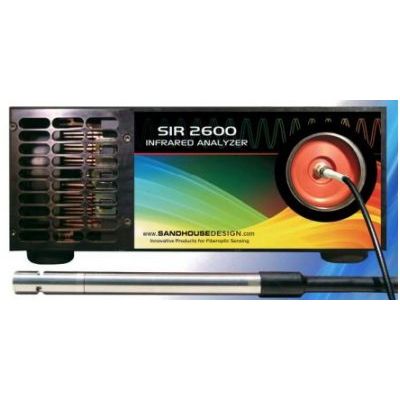

Model SIR-2600 - MID Infrared Spectrometers
The SIR-2600 Scanning Spectrometer collects spectral data from 0.9 mm to 2.6 pm wavelength range. The SIR2600`s fiber-based system uses a unique design that allows rapid spectral scans over its entire range. It can also provide real-time data from several discrete wavelengths. The compact design allows you to integrate the SIR-2600 easily into OEM applications and online process environments.
The SIR-2600 uses a single point detector and a high angular resolution-tunable grating system. The zero-backlash mechanical design provides superior accuracy and repeatability. This combination, along with an innovative 24-bit A/D converter, provides high spectral resolution and very high signal-to-noise data.An optional filter wheel provides optical order sorting of diffracted orders.The SIR-2600 is designed with a rugged aluminum housing that is robust enough to withstand the rigors of chemical processing applications.The USB 2.0-compliant interface provides fast data transfers and our included software can be used to control all of the SIR-2600`s functions as well as analyze data.
