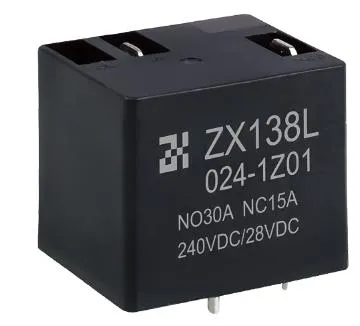

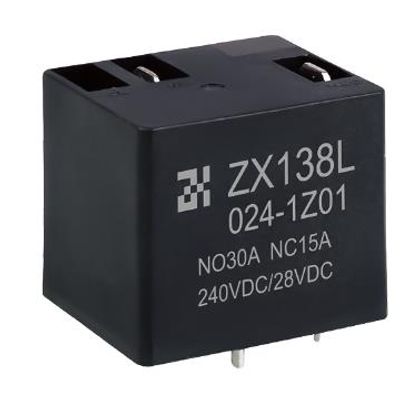

Model 45A -ZX138L - Switching Capacity General Purpose Automotive Relays
Main Features: Improved ZX138 relay by magnetic arc blowout. Up to 45A Switching capacity. PCB+Quick Connect termination.
Most popular related searches
Typical automotive Applications
- Power supply device
- Industrial controls
- Medical equipment
- Operate/Release Time 15ms. max/10ms. max
- Insulation Resistance 100MΩ, at 500VDC, 50%RH
- Dielectric Strength 500Vrms, 1 min
- Shock Resistance Functional:10g, 11ms. Destructive:100g
- Vibration Resistance DA 1.5mm, 10-55Hz
- Ambient Temperature Operating：-55℃ to 85℃ Storage：-40℃ to 130℃
- Weight Approx 32g
