CliniNet - Virtual Report Viewing System

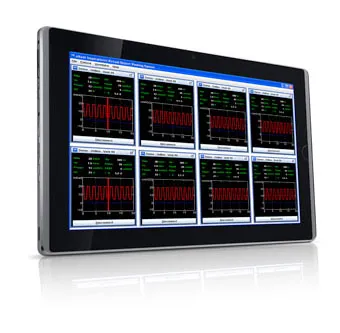

The unique CliniNet® interface and CliniNet® Virtual Report™ viewing system bring centralized, real-time data and patient management to the entire care team. The intuitive user interface provides access to your Inspiration® 7i, 5i and eVolution® 3e ventilators, allowing clinicians to view up to eight ventilators simultaneously on each computer monitor. The Inspiration and eVolution has the ability to communicate—via wireless or Ethernet—all parameters, graphics, settings, alarms and other data that previously could only be viewed at the bedside.
User Verification and Security
- Users must have network access
- Password required to access all installed devices
- Multi-level secure program access
- Wireless routers provide desired level of encryption and
- work in conjunction with hospital network security architecture
User Interface Viewing Screens
- View up to 8 ventilators on the main screen
- View up to 8 saved reference waveforms and loops*
- Multiple Easy View Tabs:
Monitoring
- Waveforms (scalable)
- Loops (scalable)
- Measured parameters
- Table number display
Trends
- Two level view
- Up to 45 trended parameters
- Superimpose up to 4 waveforms
Alarms
- High and medium priority
Settings
- Active settings
- Alarm settings
- Special settings
Info
- Vent and company information
- Patient information
Monitored / Displayed Data
- Delivered oxygen concentrations: 21 - 100%
- Trend Data (1-72 hrs.):
- Inspiration 5i, 34 trend parameters
- Inspiration 7i, 46 trend parameters
- eVolution 3e Essential, 24 trend parameters
- eVolution 3e Advanced, 24 trend parameters
- Monitoring Data:
- Inspiration 5i, 41 trend parameters
- Inspiration 7i, 53 trend parameters
- eVolution 3e Essential, 32 trend parameters
- eVolution 3e Advanced, 32 trend parameters
Basic
- Ppeak
- Ptrach*
- Pmean
- PEEP
- Vte Sp.**
- Pmin*
- Vte & Vti
- Vti + Vti/kg*
- Vte + Vte/kg*
- Exp Min Vol (Ve)
- Ve/kg*
- Ve Spont
- Respiratory Rate
- Rate Spont
- Te & Ti**
Advanced
- Ti*
- Te*
- PF
- PFe
- I:E
- H:L
- Ti / Ttot
- Leak Rate
- FiO2
- HeO2*
- Spont % 1h
- Spont % 8h
Mechanics
- Auto PEEP
- Pplateau
- RSBI
- C20/C*
- RCe
- Cstat + Cstat/kg*
- Cdyn* + Cdyn/kg*
- WOBimp
- Rinsp + Rexp
- PO.1
- PiMax
- PO.1 / PiMax
ETCO2*
- PetCO2
- VCO2/min
- VtiCO2
- VteCO2
- FetCO2
- Vd ana
- Vd alv
- Vd/Vt
- Valv
- Valv/min
- PeCO2
- FeCO2
ETCO2 Real Time Graphics*
- PCO2 Volume loop
- FCO2 Volume loop
- PCO2 + time
- FCO2 + time
- VteCO2 + time
Real Time Curves (waveforms)
- Pressure + time
- Flow + time
- Volume + time
- Pressure volume loop
- Pressure flow loop*
- Flow volume loop
- User may pause and manually or auto scale individual graphs
Settings
The settings screen displays all of the ventilator’s settings and is divided into the following categories:
- Basic settings of the active mode
- Alarm settings
- Apnea backup settings
- Smart Sigh™ settings
- Smart Nebulizer™ settings
Extensive Prioritized Alarms (High and Medium)
- The alarm screen displays a list of all alarms viewable as separate high and medium priority alarms
- Provides real time viewing and visual alerts of alarm activity
Communication Interfaces
- Ethernet 10/100 Base-T Full Duplex
- Connector: RJ-45
- Direct network interface with Ethernet cable
- Wireless interface via router or wireless Ethernet bridge
Environmental Data
- Ventilator operating temperature
- 10 to 40o C (50 to 104o F)
Ordering Information
- EVM400029: CliniNet® VR Viewing System Software
- ABDG-DT-DP501: CliniNet® Wireless Router
- Remote ventilator viewing
- Wired or Wireless solutions
- Intranet and Internet connections
- Real time viewing of multiple ventilators and patient data
- Easy system integration
and easy to use - Three levels of user access with password protection
- Facility defined level of security and encryption
